105-194 HP

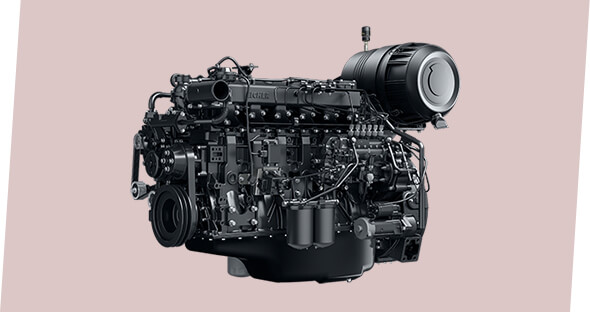

E683 is an EICHER branded in-line 6-cylinder, 4.95-liter engine, with an output-range of 105-194 HP and RPM 1500-2400. Eicher branded engines are designed with world-class technology to deliver superb fuel economy, high reliability and uninterrupted power supply. This Eicher branded engine is the right choice for various marine applications.
Specifications
- Engine-ModelE683
- Output-Range105-194 HP
- Displacement4.95 Liters
- RPM1500-2400
- Emission StandardNot Applicable
Technical SPECIFICATIONs
| Field Set | Features | 105HP - 194HP |
|---|---|---|
| Technical specifications | Rated Speed | 1500-2400 RPM |
| Speed Type | Variable | |
| Gross Power (HP) | 105-194 | |
| Emission Standards | Emissions Complaint | Not Applicable |
| General | Bore | 100 mm |
| Stroke | 105 mm | |
| Displacement | 4.9 Liters | |
| Aspiration | TC/TCI | |
| Rotation from Flywheel End | Anti-clockwise | |
| Fuel System | Mechanical | |
| Compression Ratio | 17:01 | |
| Cooling System | Liquid | |
| Cycle | 4 stroke | |
| Number of Cylinders | 6-inline | |
| Total Lubricating Capacity | 17 Liters | |
| Engine Dimensions | Height | 914 mm |
| Length | 1143 mm | |
| Width | 714 mm |
Benefits
HIGH LOAD ACCEPTANCE
Thanks to their ability to accept and instantly deliver sufficient load acceptance, EICHER branded engines provide higher redundancy, which is particularly valuable for emergency sets. Performance you can rely on.
THE PERFECT MATCH
VECV’s full range of marine diesel engines offer reliable and fuel-efficient onboard electrical power generation and power for cranes, pumps, air compressors and other heavy equipment.
RELIABLE AND POWERFUL
No matter what application, this auxiliary engine’s robust design with a ladder frame bolted to the engine block makes it highly reliable. Its rigid in-line cylinder block with generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and turbo provide a powerful engine.
EASY INSTALLATION – SERVICE FRIENDLY
Designed to withstand high exhaust back pressure, this engine is easy to install and perfect for installations on fish trawler / feeder boats. Its good accessibility also facilitates service and maintenance.
