160kVA

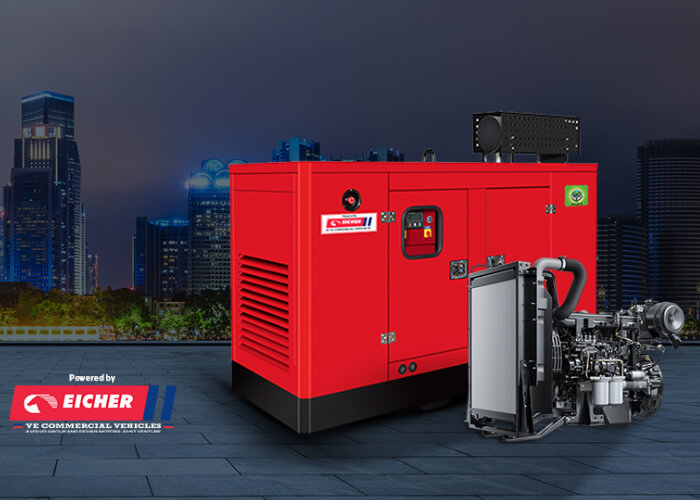

160kVA CPCB II - EICHER branded engine is an in-line 6-cylinder, 5.7-liter, turbocharged intercooled. Eicher branded engines are designed with world class technology to deliver superb fuel economy, high reliability and uninterrupted power supply. Eicher branded engine is right choice for power generation.
Specifications
- Engine-ModelDiesel Engine
- Output-Range201 HP/148kWm
- Displacement5.7 Liters
- RPM/Hz1500/50 Hz
Technical SPECIFICATIONs
| Field Set | Features | 160kVA CPCB II ENGINE |
|---|---|---|
| Technical specifications | Mechanical Output | 148 kWm |
| Electrical Output | 160kVA/128kWe | |
| Rated Speed | 1500 RPM | |
| Gross Power (HP) | 201 | |
| Emissions Complaint | CPCB II | |
| General | Bore | 100 mm |
| Stroke | 120 mm | |
| Displacement | 5.7 Liters | |
| Aspiration | Turbocharged Intercooled | |
| Rotation from Flywheel End | Anti-clockwise | |
| Combustion System | Direct Injection System | |
| Type of Governor | Electronic | |
| Class of Governing | A1 | |
| Compression Ratio | 17.5:01 | |
| Cooling System | Liquid | |
| Cycle | 4 stroke | |
| Number of Cylinders | 6-inline | |
| Standard followed for Flyhweel Hsg / Flywheel | SAE 2/11.5 | |
| Service Interval | 700 Hrs/12 Months | |
| Total Coolant Capacity | 21.5 Liters | |
| Total Lubricating Capacity | 23.8 Liters | |
| Engine Dimensions | Dry Weight | 798 kg |
| Height | 1390 | |
| Length | 1526 | |
| Width | 1039 |
