156-225 HP

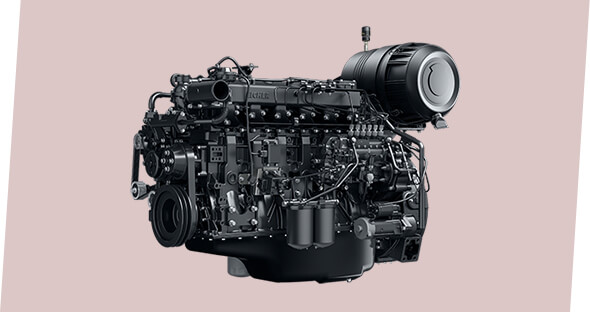

E694 is an EICHER branded in-line 6-cylinder, 5.7-liter engine, with an output-range of 156-225 HP and RPM 1500-1800. Eicher branded engines are designed with world-class technology to deliver superb fuel economy, high reliability and uninterrupted power supply. This Eicher branded engine is the right choice for various marine applications.
Specifications
- Engine-ModelE694
- Output-Range156-225 HP
- Displacement5.7 Liters
- RPM1500-1800
- Emission StandardNot Applicable
Technical SPECIFICATIONs
| Field Set | Features | 156HP-225HP |
|---|---|---|
| Technical specifications | Rated Speed | 1500-1800 RPM |
| Speed Type | Fixed/Variable | |
| Gross Power (HP) | 156-225 | |
| Emission Standards | Emissions Complaint | Not Applicable |
| General | Bore | 100 mm |
| Stroke | 120 mm | |
| Displacement | 5.7 Liters | |
| Aspiration | TCI | |
| Rotation from Flywheel End | Anti-clockwise | |
| Fuel System | Mechanical | |
| Compression Ratio | 17.5:01 | |
| Cooling System | Liquid | |
| Cycle | 4 stroke | |
| Number of Cylinders | 6-inline | |
| Specification of lube oil | API CI4 Plus -SAE 15W 40 | |
| Total Lubricating Capacity | 23.8 Liters | |
| Engine Dimensions | Dry Weight | 610 kg |
| Height | 833 mm | |
| Length | 1316 mm | |
| Width | 866 mm |
